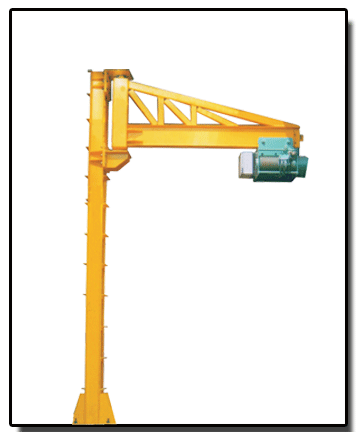

JIB CRANE




SPECIFICATION

CAPACITY
(TONNE)		 RADIUS OF
JIB A (M)		 LIFTING
HEIGHT
C (M)		 OVER ALL
HEIGHT
(B) (MM)		 BEAM
SIZE
ISMB		 PILAR
SIZE
(MM)		 BASE
PLATE
(E) (MM)		 BR
(MM)		 ANCHOR
BOLTS
(MM)		 NET WT.
KGS.
0.25 3.0 3.0 3900 200 220 800 700 25.4 mm 555
4.0 3.0 3950 250 220 800 700 25.4 mm 620
5.0 3.0 3950 250 275 900 800 25.4 mm 845
6.0 3.0 4000 300 275 900 800 25.4 mm 915

0,50 3.0 3.0 3950 250 275 900 800 28 mm 740
4.0 3.0 4000 300 325 900 800 28 mm 880
5.0 3.0 4050 350 325 1000 900 28 mm 980
6.0 3.0 4150 450 325 1000 900 28 mm 1200

1.0 3.0 3.0 4100 300 355 950 850 32 mm 870
4.0 3.0 4200 400 355 1000 900 32 mm 910
5.0 3.0 4250 450 410 1000 900 32 mm 980
6.0 3.0 4300 500 410 1050 950 32 mm 1200

2.0 3.0 4.0 5300 400 410 1000 900 32 mm 985
4.0 4.0 5350 450 460 1000 900 32 mm 1580
5.0 4.0 5400 500 460 1100 1000 32 mm 1685
6.0 4.0 5450 550 460 1100 1000 32 mm 1950

3.0 3.0 4.0 5400 450 460 1100 1000 38 mm 1400
4.0 4.0 5450 500 510 1150 1000 38 mm 1840
5.0 4.0 5500 550 510 1150 1000 38 mm 1880
6.0 4.0 5550 600 610 1200 1050 38 mm 1900

5.0 3.0 4.0 5700 600   1200 1050 50 mm 1860
4.0 4.0 5560 450x mc-250x120x10 Plate  610 1400 1150 50 mm 2400
5.0 4.0 5600 500x mc-250x120x10 Plate  660 1500 1300 50 mm 2500
6.0 4.0 5600 500x mc-250x120x10 Plate  660 1500 1300 50 mm 2920
